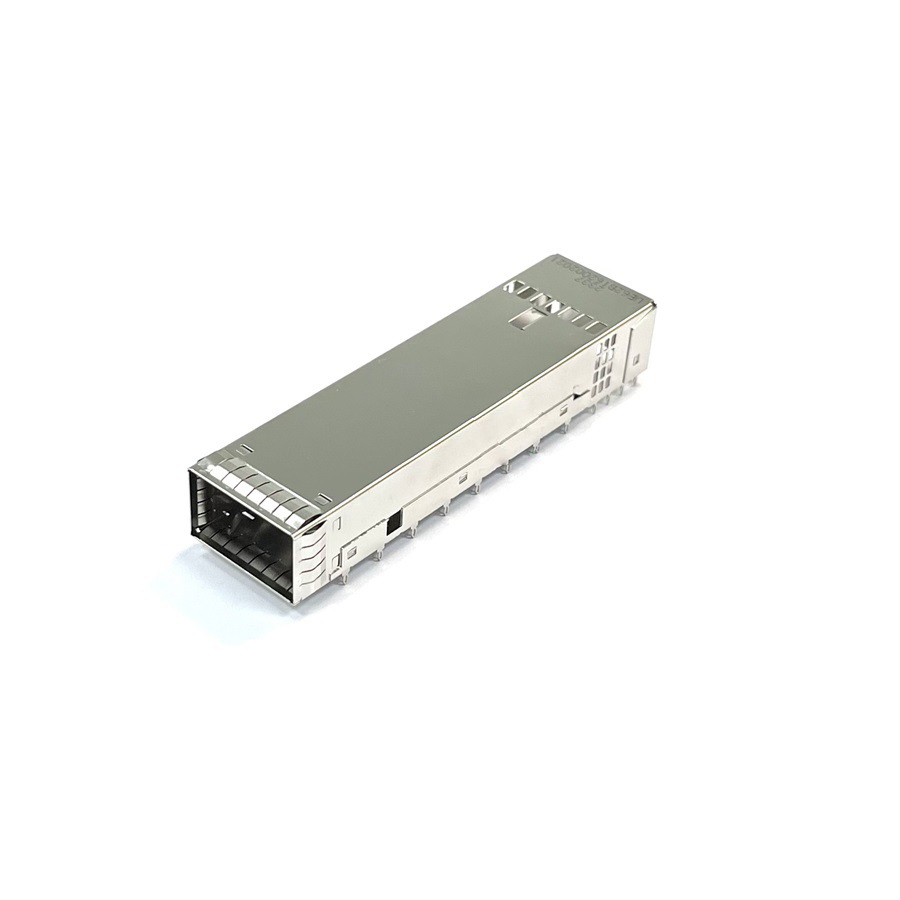

| OSFP-XD 112G Connector（V62-CDZ01-040030T） | |
| Terminal: | Copper Alloy. Plating: See Part No. |
|
Housing: |
Solder Reflow Process Compatible LCP , UL 94 V-0 |
|
Solder Rings: |
Copper Alloy. Plating: Matte Tin Plated |
|
Transmission Speed: |
112Gbps |
| Electrical characteristics: |
a) Operating Current: : 0.5A per signal contact |
| b) Operating Voltage: 30VDC per contact | |
| c) Differential Impedance: 92Ω +/- 10Ω | |
| d) Durability: 100 mating cycles | |
| e) Temperature: -40°C~ +85°C | |
| Application: |
Networks, Switch,Servers |
|
Environmental standards: |
RoHS Compliant |
