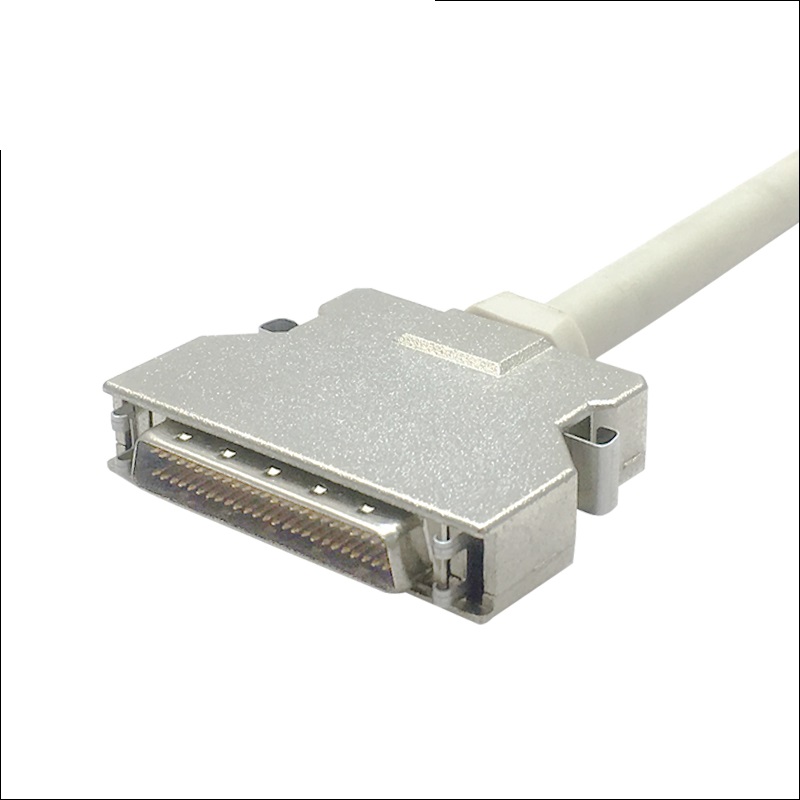

HPDB 50P连接线锌合金外壳弹片式 | |
连接器(connector): | SCSI(HPDB) 50Pin Male CONN. |
SCSI(HPDB) 50Pin Male CONN. | |
电缆(wire): |
UL20276 28AWG*25P+AL+BRAID PVC JACKET OD=8.5mm |
颜色(color): | BLACK OR BEIGE |
长度(length): | 1M,3M…30M.(Customizable) |
电气特性(Electrical characteristics): | a) Contact Currect Rating: 5 Amp |
b) Dielectric Withstanding Voltage:500V AC | |
c) Insulation Resistance: 1MΩ/Min | |
d) Contact Resistance: 5Ω/Max | |
e) Operaion Temperature: -25℃~+85℃ | |
产品特点(productfeatures): |
●优质纯铜双绞电缆 Pure copper double stranded cable |
●双层屏蔽(铜编织) Double shield (braided copper) |
|
●锌合金外壳更高档 Zinc alloy housing is more upscale |
|
产品应用(application): |
工业设备,运动控制卡等信号传输. Industrial equipment, motion control card |
环保标准(Environmental standards): | Rohs compliant |
