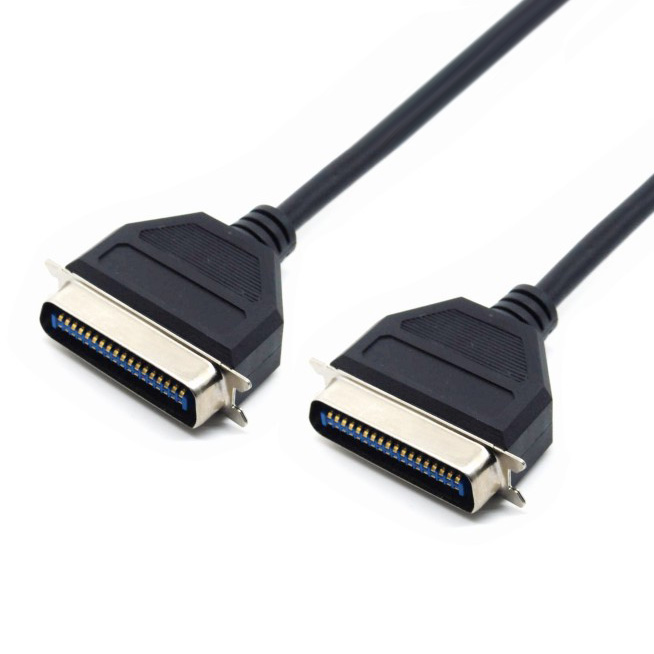

| Centronics(57) 36P公-公,成型式 | |
| 连接器(connector): |
Centronics(57) 36pin male solder,housing color:blue, simple makou type |
|
Centronics(57) 36pin male solder,housing color:blue, simple makou type |
|
| 电缆(wire): |
UL20276 18.5P*28AWG+Foamed PP Tape+ABD,PVC jacket, color:black,OD 8.0mm |
| 颜色(color): | Black |
| 长度(length): | 1M,3M…30M.(Customizable) |
| 电气特性(Electrical characteristics): | a) Contact Currect Rating: 5 Amp |
| b) Dielectric Withstanding Voltage:500V AC | |
| c) Insulation Resistance: 1MΩ/Min | |
| d) Contact Resistance: 5Ω/Max | |
| e) Operaion Temperature: -25℃～+85℃ | |
| 产品特点(productfeatures): |
●优质纯铜双绞电缆 Pure copper double stranded cable |
|
●双层屏蔽(铜编织) Double shield (braided copper) |
|
|
●成型外模更稳定 Molding outside more stable |
|
| 产品应用(application): |
工业设备,高速打印机 Industrial equipment, high speed printer |
